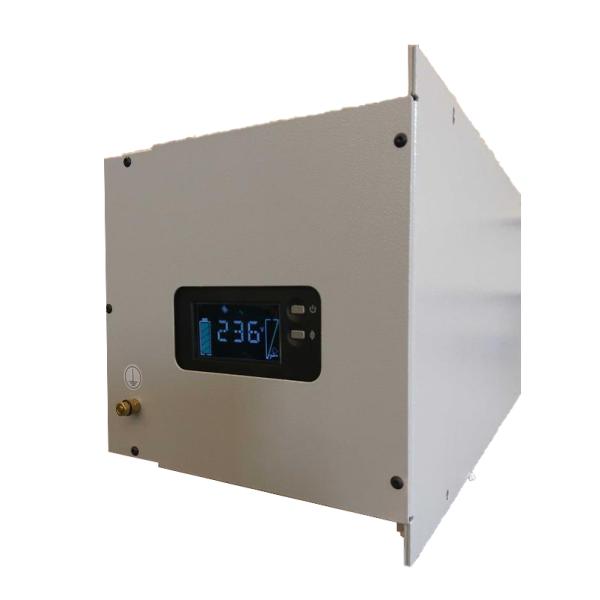

Uninterruptible power supply in grid-interactive technology with AVR, output 3000 VA/2400 W. Output voltage: sine, maintenance-free lead batteries 4 x 9Ah for battery operation at a load of 2400 W = 3 min. 1800 W = 5 min., 50 W = 300 min. The UPS system is installed in the wall housing. Dimensions (HxWxD): 285 x 565 x 256 mm, weight: 38 kg, connections: flexible cable with CEKON (3-pin) plug/socket.
The UPS system generates a high voltage that can be dangerous if unauthorized repairs are attempted. Repairs may only be carried out by trained and instructed personnel.
The UPS system contains a battery energy source. The sockets of the uninterruptible power supply (UPS) can be live even if the UPS system is not connected to the mains.
Prevent water and other objects from entering the UPS system and the sockets.
Connect the UPS system directly to a grounded two-pole Schuko socket.
The mains connection of the UPS system must be easily accessible so that the UPS system and the mains can be disconnected quickly.
In the event of danger, switch off the UPS system and pull the power plug of the UPS supply cable out of the socket.
Important: This UPS system is not suitable for supplying inductances (electric motors or transformers). Do not connect a laser printer or plotter to the UPS. These consume more power during operation than the UPS can supply. The UPS system then goes into overload and switches off.
Do not throw the battery into a fire - the battery can explode. Do not open the battery - released battery acid can cause chemical burns to the face and eyes.
