NetPower NP 20 SR

Power 2000 VA/1600 W

Productinformation

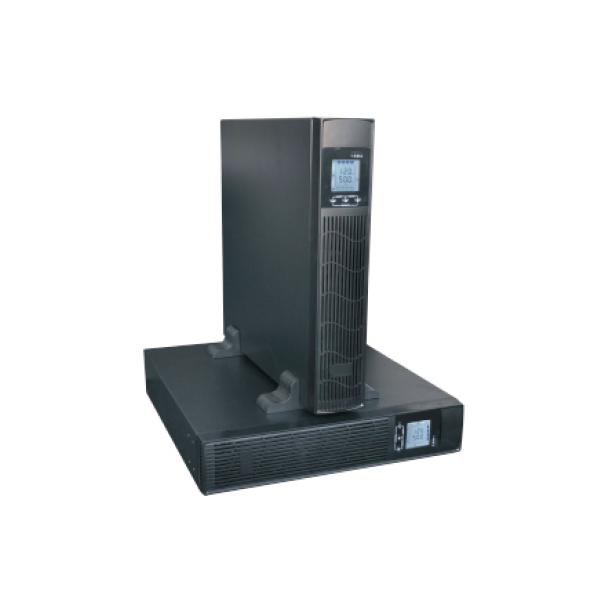

Uninterruptible power supply with line-interactive topology. Output capacity: 2000 VA / 1600 W. Pure sine wave output voltage, both on mains and battery power. Maintenance-free lead-acid battery. Includes USB interface, data cable, and management/shutdown software. Slot for SNMP adapter CS141B_SC. Suitable for use as a standalone unit or for rack mounting (19-inch). LCD display is rotatable. Dimensions (H x W x D): 132 mm (3U) x 440 x 410 mm, Weight: 21.3 kg

  • The UPS system generates a high voltage that can be dangerous if unauthorized repairs are attempted. Repairs may only be carried out by trained and instructed personnel.

  • The UPS system contains a battery energy source. The sockets of the uninterruptible power supply (UPS) can be live even if the UPS system is not connected to the mains.

  • Prevent water and other objects from entering the UPS system and the sockets.

  • Connect the UPS system directly to a grounded two-pole Schuko socket.

  • The mains connection of the UPS system must be easily accessible so that the UPS system and the mains can be disconnected quickly.

  • In the event of danger, switch off the UPS system and pull the power plug of the UPS supply cable out of the socket.

  • Important: This UPS system is not suitable for supplying inductances (electric motors or transformers). Do not connect a laser printer or plotter to the UPS. These consume more power during operation than the UPS can supply. The UPS system then goes into overload and switches off.

  • Do not throw the battery into a fire - the battery can explode. Do not open the battery - released battery acid can cause chemical burns to the face and eyes.
